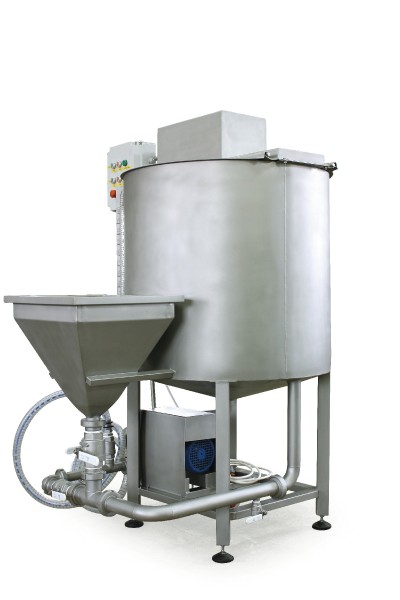

Brine mixers MS series are designed to prepare homogenous brine solution for injection of muscles and meat elements. They are equipped in double mechanical mixers and injector mixer which guarantee fast and efficient producing of brine solutions. High efficiency centrifugal pump activate fluid circulation and sucking of dry substances. It allows also brine transportation to any place in meat plant.
Applications
- Preparation of homogenous brine solution.
- Brine transportation.
- Brine cooling.
Main construction features

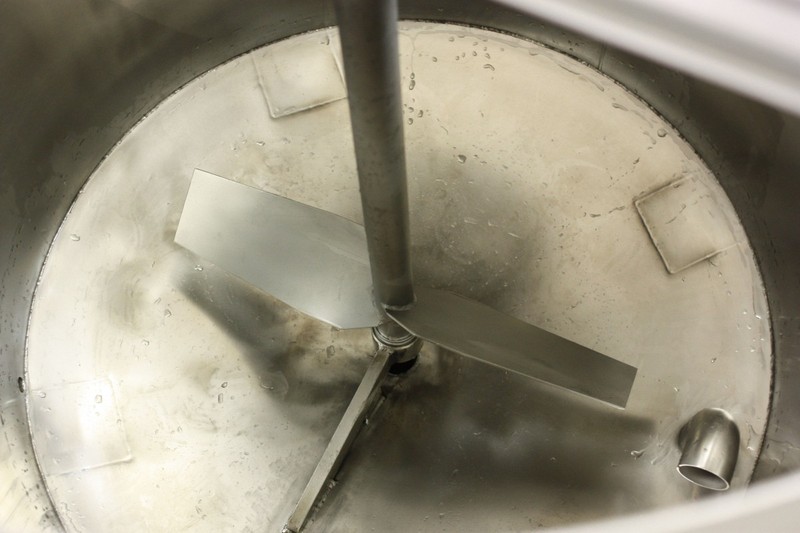

- Efficient double mixing system.
- Mechanical and injector mixers.
- Ergonomic construction, easy in maintenance and cleaning.
- High reliability and failure free.
- Solidity, precision and esthetics.
- All stainless steel construction
| Specification | Machine type |
||
| MS-400 | MS-600 | MS-800 | |
| Drum capacity |
400l | 600l | 800l |
| Speed adjust |
Constant | Constant | Constant |
| Power supply |
3x400V, 50Hz. | 3x400V, 50Hz. | 3x400V, 50Hz. |
| Dimensions (L x W x H) | 1400x1200x1700mm | 1400x1200x1800mm | 1400x1200x2100mm |
| Weight |
200kg |
250kg |
300kg |
| Specification | Machine type | |
| MS-1000 | MS-1200 | |
| Drum capacity | 1000l | 1200l |
| Speed adjust | Constant | Constant |
| Power supply | 3x400V, 50Hz. | 3x400V, 50Hz. |
| Dimensions (L x W x H) | 1400x1200x2100mm | 1400x1300x2200mm |
| Weight |
350kg |
400kg |
