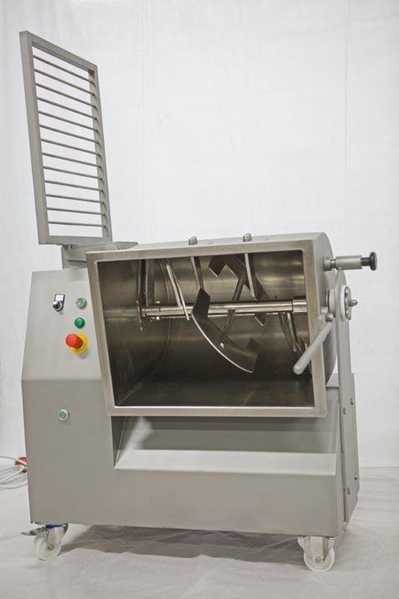

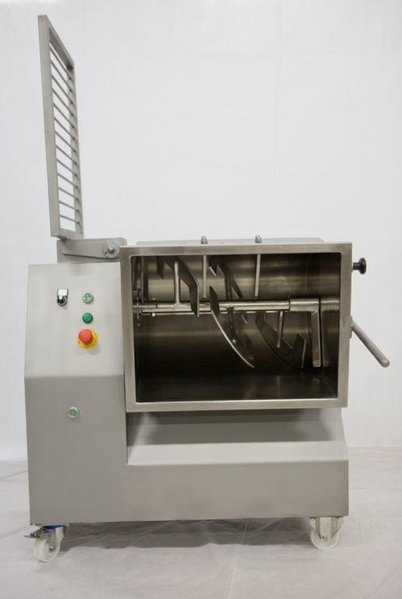

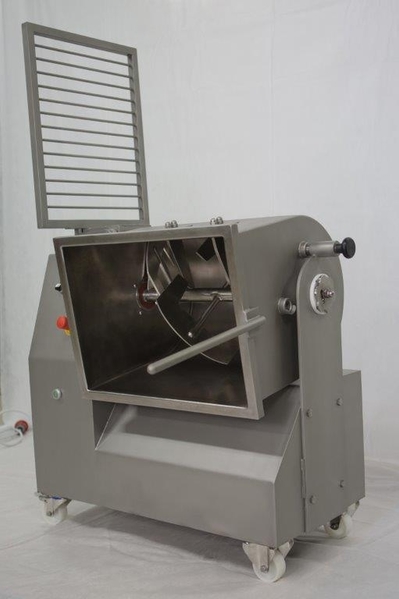

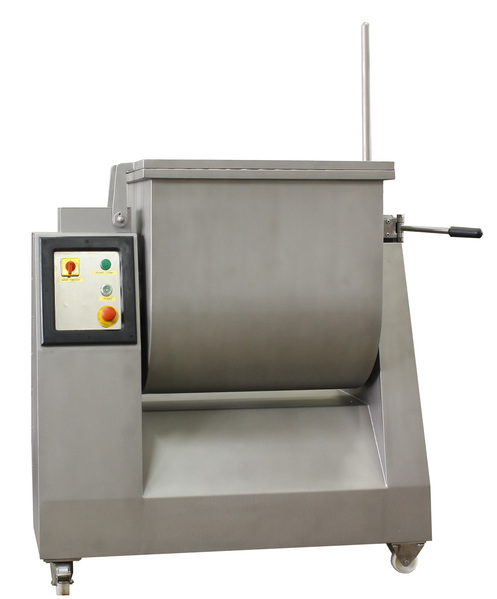

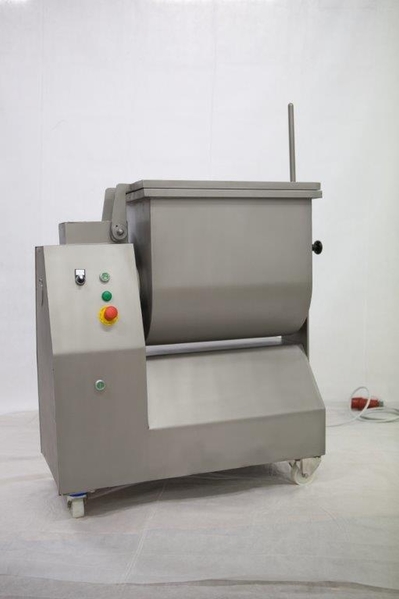

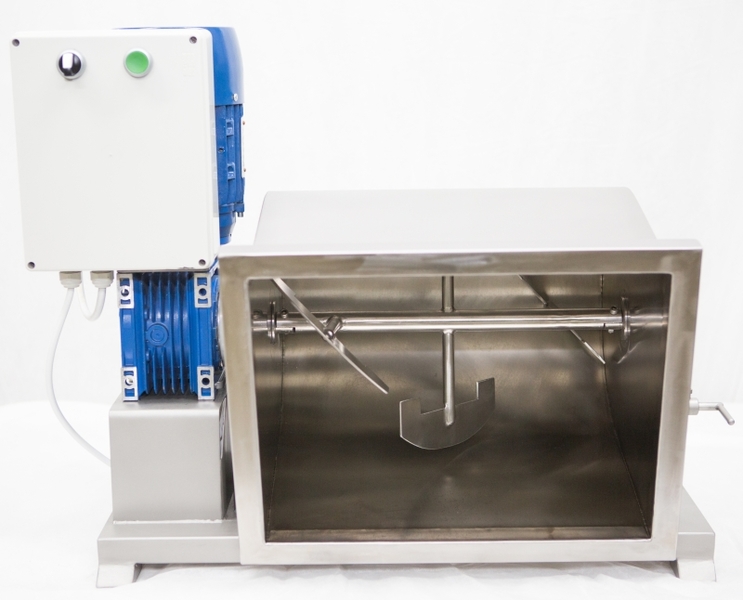

Mixer MF series allows automatic mixing and blending of meat stuffing. They are equipped with paddle mixing system and manual unloading. Standard mixers have constant rotation speed which is optimal for the process and is about 27 rpm. Depending on the drum size it is a little higher (at smaller drums) or lower (at bigger drums). There is possible to change rotation direction. Each mixer has safety lid and CE certificate.
Applications
- Mixing of meat stuff.
- Mixing of vegetables and salads.
- Mixing of sauces, cheeses and other food products.
Main construction features
- Unique paddles system gives high process efficiency.
- Very compact and safety construction
- Ergonomic construction, easy in maintenance and cleaning.
- High reliability and failure free.
- Solidity, precision and esthetics.
| Specification | Machine type |
||
| MF-50 | MF-100 | MF-150 | |
| Drum capacity |
50l | 100l | 150l |
| Maximum load |
35kg | 70kg | 105kg |
| Speed adjust | Constant | Constant | Constant |
| Rotation speed |
≈27 rpm |
≈27 rpm |
≈27 rpm |
| Main motor |
1.1kW |
1.1kW |
1.5kW |
| Power supply |
3x400V,50Hz. | 3x400V,50Hz. | 3x400V,50Hz. |
| Dimensions (L x W x H) | 800x600x1400mm | 900x600x1400mm | 1000x600x1500mm |
| Weight |
180kg | 200kg | 230kg |
| Specification | Machine type |
|
| MF-200 | MF-250 | |
| Drum capacity | 200l | 250l |
| Maximum load | 120kg | 150kg |
| Speed adjust | Constant | Constant |
| Rotation speed | ≈27 rpm |
≈27 rpm |
| Main motor |
1.5kW |
1.5kW |
| Power supply | 3x400V,50Hz. | 3x400V,50Hz. |
| Dimensions (L x W x H) | 1100x600x1600mm | 1200x600x1600mm |
| Weight | 300kg | 350kg |
